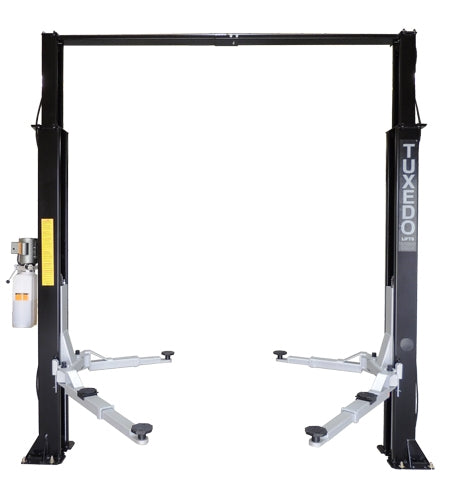

Tuxedo TP9KAC-TUX - 9,000 lb. Capacity Asymmetric 2-Post Lift


Please call us for customization options.

The TUXEDO TP9KAC-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed clear floor vehicle lift with standard lift features including: asymmetrical swing arms, low profile 4” lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The two piece column combined with reliable chain drive cylinders makes it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value.

  • 9,000 lb lifting capacity
  • Asymmetric Lift Arms
  • Low Profile Swing Arm Design
  • Low Profile 'Drop In' Lift Pads
  • Saddle Pad Adapters included (1 pair)
  • Overhead 'Shut Off' limit wire
  • Dual Point Lock Release
  • Automatic Arm Restraints
  • Chain Drive Cylinders
  • Durable Power-Coat Finish
Specifications TP9KAC-TUX
Capacity 9,000 lbs.
Overall Height 142.7"
Width Overall w/Power Unit 141"
Max Lift Height 72"
Width Between Columns 110.4"
Min Pad Height 4"
Drive thru Clearance 93.7"
Lifting speed 50 sec
Asymmetric / Symmetric Asymmetric
Clear Floor / Floor Plate Clear Floor
Long Arm Reach - Min/Max 28.5" - 41.4"
Short Arm Reach - Min/Max 37.1" - 57.2"
Ceiling Height Required 144"
Max Load Per Arm 2,250 lbs.
Power 220V - 20 AMP - 1 PH
Ship Weight 1,390 lbs.
