Challenger CL12A Series HD ALI 2 Post Vehicle Lift 12,000

$10,688.00

Please call us for customization options.

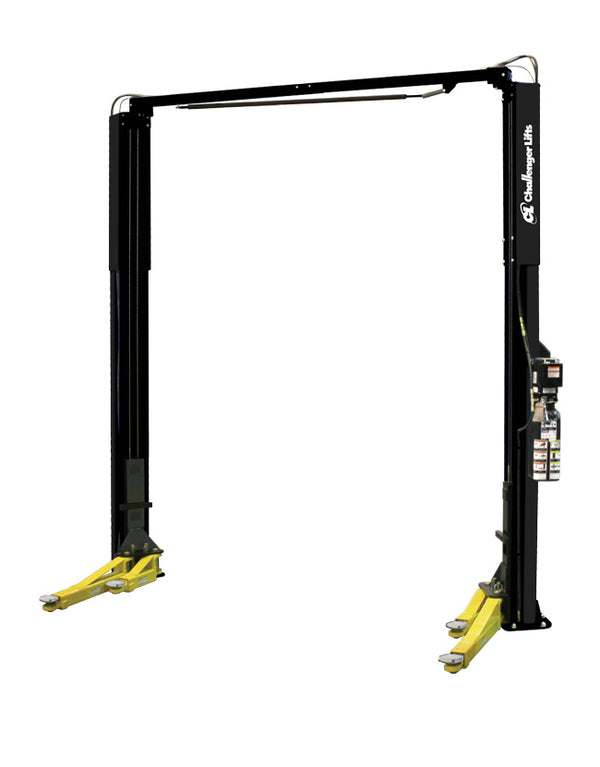

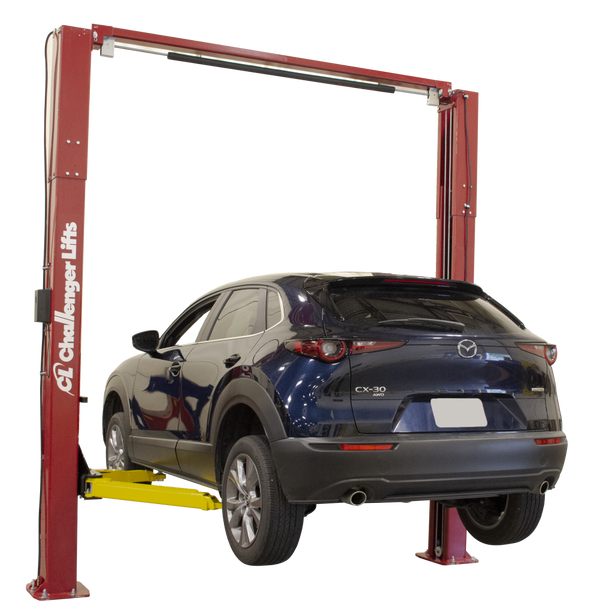

Challenger’s 12,000 lb. capacity CL12 2-post lift maximizes your profitability with true 3-stage front and 3-stage rear arms. The CL12 can accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay. Geared arm restraints and steel pulleys increase durability. Other features include a single-point mechanical lock release system that allows technicians to disengage both column locks simultaneously and a padded overhead shut off system. Standard and extended height models can now be adjusted 6″ to allow for ceiling obstructions, making them easy to install.

Features & Benefits

12,000 lb. lift capacity
3-stage front and 3-stage rear arms accommodate a wide range of common cars, trucks, vans as well as SUVs within the same service bay
60" lifting carriage design increases lift life
Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
6″ height adjustability on standard models provides allowance for ceiling obstruction, easing installation
Padded overhead shut off system prevents vehicle damage
Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
Premium powder coat finish provides long-lasting durability
Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Heavy-duty polyurethane screw pads accommodate a wide range of recommended lifting points
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

Specifications

Model Number	CL12A	CL12A-1	CL12A-2	CL12A-LC
Adjustable Width Overall	142" / 148" / 154"	142" / 148" / 154"	142" / 148" / 154"	142" / 148" / 154"
ALI® Certified	Yes	Yes	Yes	Yes
Arm Reach (Max.)	59”	59”	59”	59"
Arm Reach (Min.)	27.5”	27.5”	27.5”	27.5"
Arms	3-stage front/3-stage rear	3-stage front/3-stage rear	3-stage front/3-stage rear	3-stage front/3-stage rear
Ceiling Height Required	14' 3" Minimum	15' 3" Minimum	16' 3" Minimum	12' Minimum
Colors Available	Red, Blue, Black	Red, Blue, Black	Red, Blue, Black	Red, Blue, Black
Drive-Thru Clearance	103.5”, 109.5" or 115.5"	103.5”, 109.5" or 115.5"	103.5”, 109.5" or 115.5"	103.5”, 109.5" or 115.5"
Floor to Overhead Switch	12' 8" or 13' 2"	13' 8" or 14' 2"	14' 8" or 15' 2"	11' 4.5"
Inside Columns	114.5" / 120.5" / 126.5"	114.5" / 120.5" / 126.5"	114.5" / 120.5" / 126.5"	114.5" / 120.5" / 126.5"
