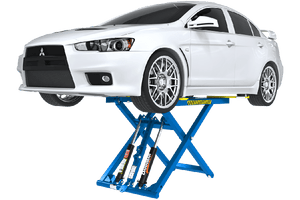

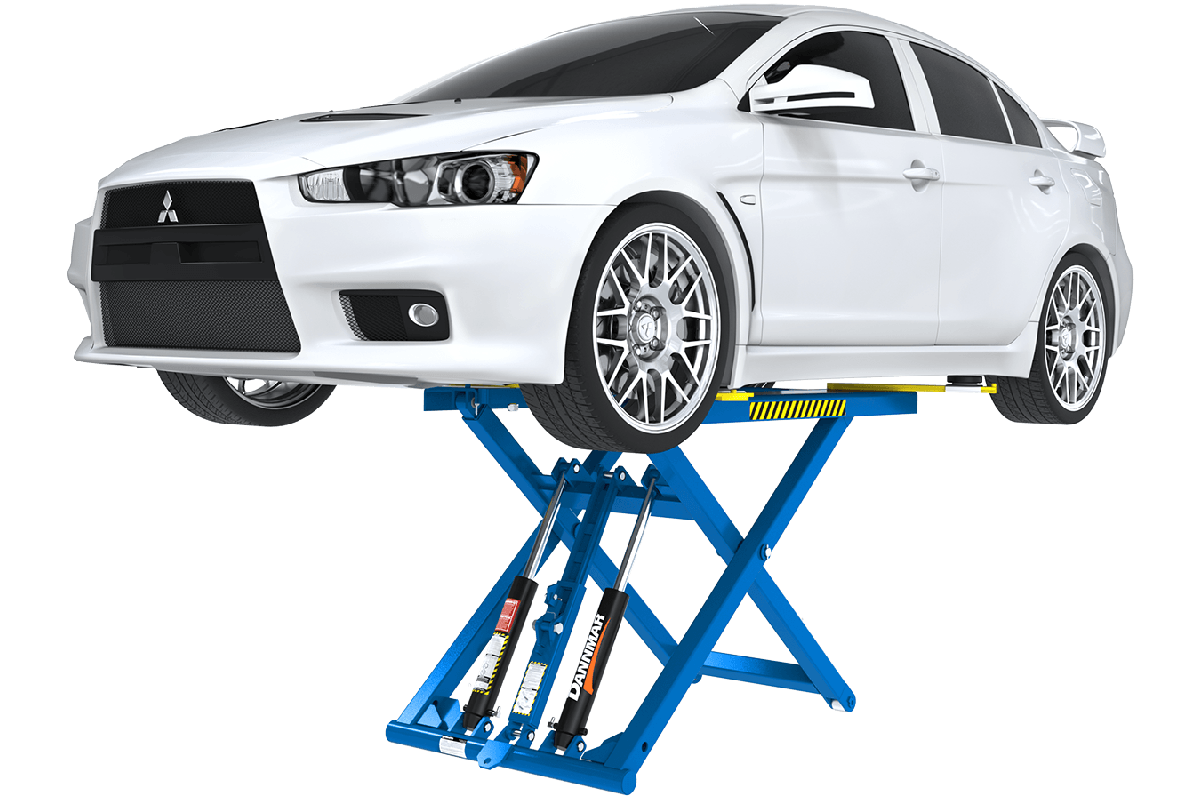

Dannmar’s mid-rise lift is designed to compactly fit into shops that don’t have lots of large floor areas to choose from. The DMR-6 comes with adjustable arm assemblies and multi-position safety lock bar to provide the flexibility necessary for the job.

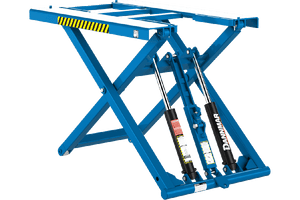

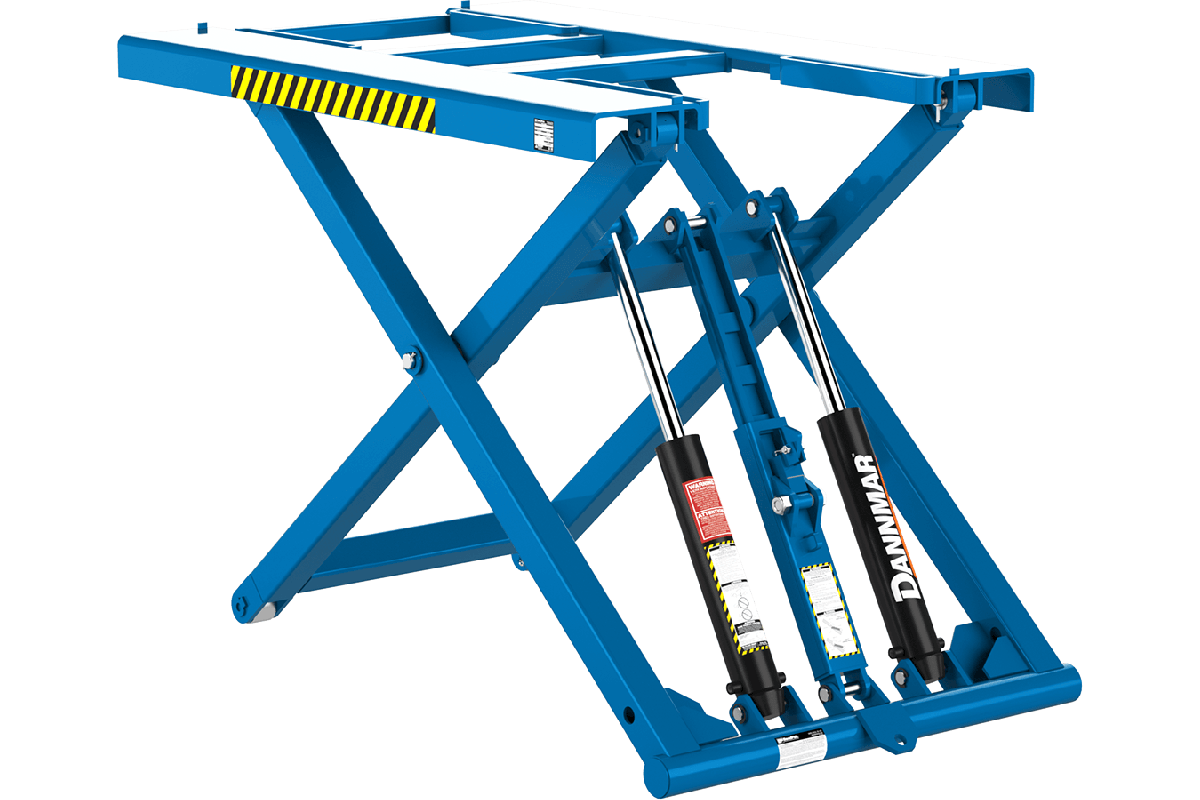

Dannmar’s DMR-6 features rigid construction with four support bars to make this the strongest mid-rise lift in its class. With Dannmar’s DMR-6 you can safely perform wheel, suspension, and brake service.
A hydraulic cylinder with a built-in flow divider ensures a safe, even rise and descent with every use on the DMR-6. This is important—even single-platform lifts require an equal balance of pressure to prevent vehicle tipping and ensure weight is evenly applied across the lift platform.
Operator controls are located away from the lift and allow safe deactivation of the locks without the need to push or pull awkward release bars or lock release handles. Just press the Down button, and watch as the platform fully descends in seconds flat. More lock positioning gives technicians the ability to work at different working heights. And Dannmar’s installed lighter air cylinders that collectively release safety locks during descent with a simple push of a button. The cylinders are easy to maintain and provide an absolutely safe and controlled descent with each use.
These pads are standard equipment and are designed to contact each vehicle’s undercarriage with a safe and careful grip. And because they’re rubber they don’t leave evidence or marks on the undercarriage.
|Lifting Capacity||6,000 lbs. (2,724 kg)|
|Lowered Height||4.75” (121 mm)|
|Max. Lifting Height (w/o Adapters)||48" (1,219 mm)|
|Overall Length||81" (2,057 mm)|
|Overall Width (w/o Lift Arms)||41.5” (1,054 mm)|

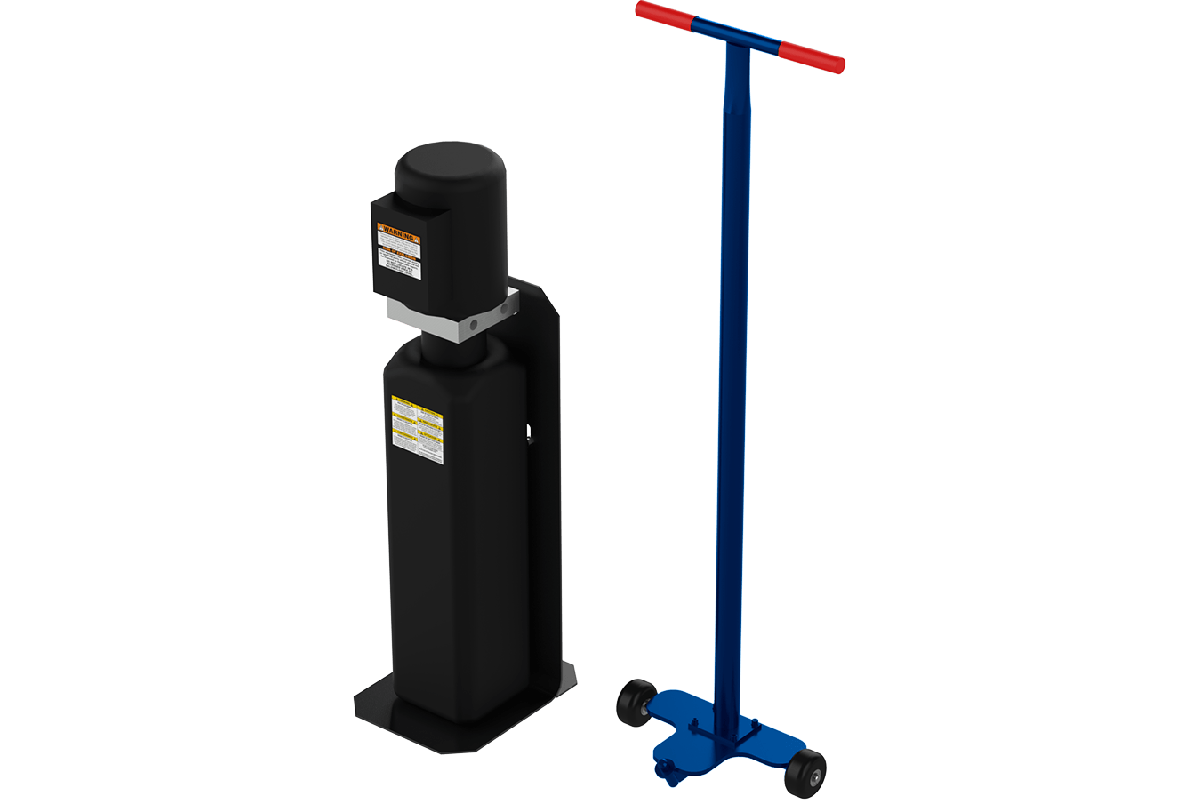

|Tow Cart Height||47.5” (1,209 mm)|
|Tow Cart Width||14.75” (374 mm)|
|Tow Cart Depth||8.25” (210 mm)|
|Lifting Time||45 sec|
|Motor||110-VAC / 50-60 Hz / 1Ph|
|Shipping Weight||944 lbs. (428 kgs)|
|Shipping Dimensions||82" x 44" x 23" (2,082 mm x 1,117 mm x 597 mm)|
